Texas Instruments
TPS61254YFFT
Tiny Boost Converter with Input Current Limit and Bypas. 4.5 V Output Voltage 9-DSBGA -40 to 85
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS61254YFFT technical specifications.
General
| Efficiency | 93% |
| Lead Free | Lead Free |
| Max Input Voltage | 4.35V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Nominal Output Voltage | 4.5V |
| Number of Outputs | 1 |
| Output Current | 800mA |
| Output Type | Fixed |
| Output Voltage | 4.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 23uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS61254YFFT Datasheet
Download the complete datasheet for Texas Instruments TPS61254YFFT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

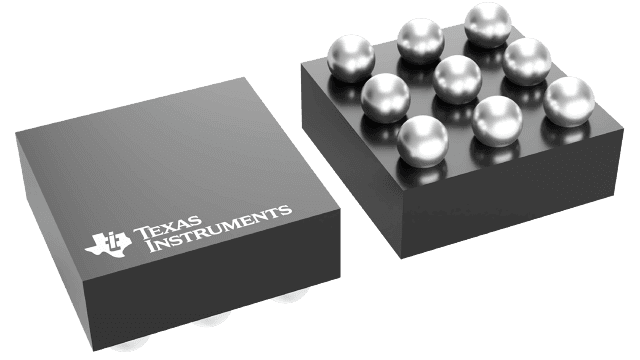

Product Images
