Texas Instruments
TPS61310YFFT
1.5A multiple LED Camera flash driver with I<sup>2</sup>C compatible interface 20-DSBGA -40 to 85
Frequency2MHz
PackageBGA
Power1.4W
Quick Jump:
Technical Specifications
Texas Instruments TPS61310YFFT technical specifications.
General
| Package/Case | BGA |
| Frequency | 2MHz |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Power Dissipation | 1.4W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Number of Outputs | 3 |
| Number of Segments | 2 |
| Output Current | 1.5A |
| Output Voltage | 5.7V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.4W |
| Quiescent Current | 590uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS61310YFFT Datasheet
Download the complete datasheet for Texas Instruments TPS61310YFFT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

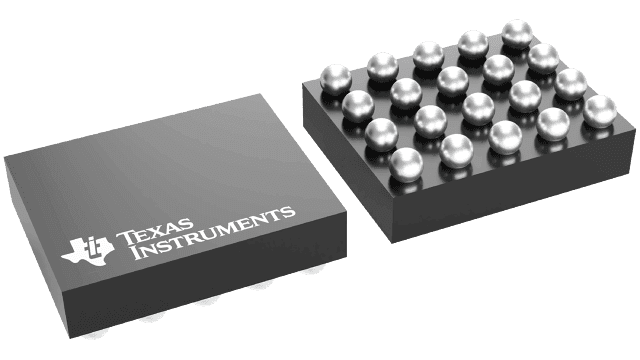

Product Images
