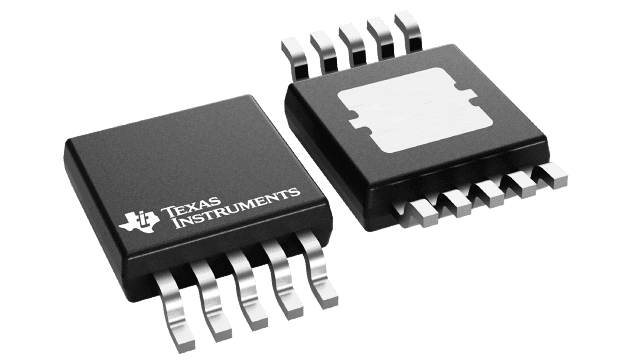

TPS62020DRCR

600mA Step-Down Converter, 95% Eff, 2.5-6V In, 0.7-6V Out, 18uA Quiescent, VSON

High-efficiency, adjustable step-down converter with 95% efficiency and 600mA maximum output current. Features a low 18µA quiescent current and operates from a 2.5V to 6V input voltage range. Delivers an adjustable output voltage from 700mV to 6V. This surface-mount, lead-free component is housed in a VSON package and operates across a -40°C to 85°C temperature range.

PackageVSON

MountingSurface Mount

Quick Jump:

Technical Specifications

Texas Instruments TPS62020DRCR technical specifications.

General

Package/Case	VSON
Efficiency	95%
Lead Free	Lead Free
Max Input Voltage	6V
Min Input Voltage	2.5V
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Output Current	600mA
Max Output Voltage	6V
Min Output Voltage	700mV
Mount	Surface Mount
Number of Outputs	1
Operating Supply Voltage	6V
Output Configuration	Positive
Output Current	600mA
Output Type	Adjustable
Output Voltage	6V
Package Quantity	1
Packaging	Tape and Reel
Quiescent Current	18uA
Radiation Hardening	No
RoHS Compliant	Yes
Synchronous Rectifier	Yes
Weight	0.000885oz
