High-efficiency, 1.2A step-down DC/DC converter with a fixed 1.6V output voltage. Achieves up to 95% efficiency, operates from a 2.5V to 6V input, and features a low 18uA quiescent current. This synchronous rectifier is available in a HVSSOP package, suitable for operation between -40°C and 85°C.
PackageHVSSOP
Quick Jump:
Technical Specifications
Texas Instruments TPS62043DGQ technical specifications.
General
Package/Case
HVSSOP
Efficiency
95%
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.2A
Max Output Voltage
1.6V
Min Output Voltage
1.6V
Number of Outputs
1
Operating Supply Voltage
6V
Output Configuration
Positive
Output Current
1.2A
Output Type
Fixed
Output Voltage
1.6V
Package Quantity
80
Packaging
Rail/Tube
Quiescent Current
18uA
RoHS Compliant
Yes
Series
TPS62043
Synchronous Rectifier
Yes
Weight
0.000829oz
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS62043DGQ Datasheet
Download the complete datasheet for Texas Instruments TPS62043DGQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

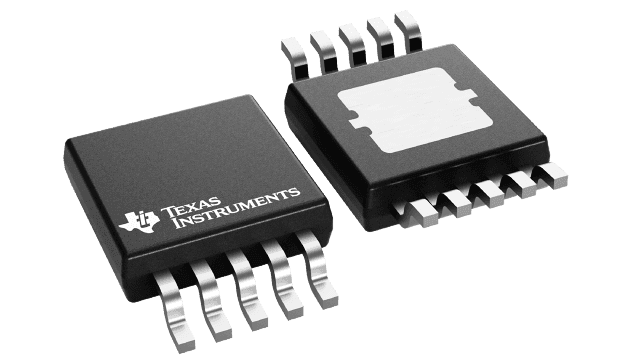

Product Images
