Texas Instruments
TPS62110RSAT
Conv DC-DC 3.1V to 17V Synchronous Step Down Single-Out 1.2V to 16V 1.5A 16-Pin VQFN EP T/R
PackageQFN
Quick Jump:
Technical Specifications
Texas Instruments TPS62110RSAT technical specifications.
General
Package/Case
QFN
Height
0.9mm
Lead Free
Lead Free
Length
4mm
Max Input Voltage
17V
Min Input Voltage
3.1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
16V
Min Output Voltage
1.2V
Number of Outputs
1
Operating Supply Current
20uA
Output Current
1.5A
Output Voltage
16V
Package Quantity
250
Packaging
Cut Tape
Quiescent Current
20uA
RoHS Compliant
Yes
Series
TPS62110
Weight
0.001623oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS62110RSAT Datasheet
Download the complete datasheet for Texas Instruments TPS62110RSAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

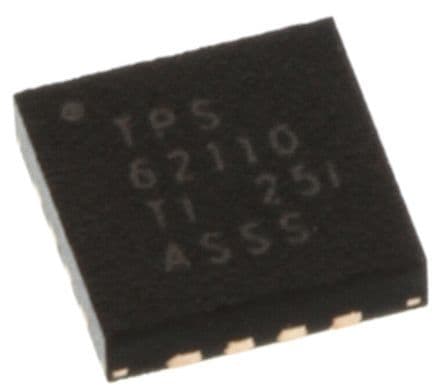

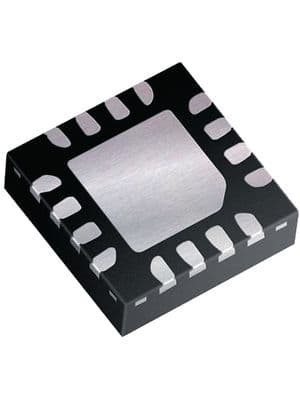

Product Images
