1.5A, 5V fixed output step-down converter with 17V maximum input voltage. This power management IC operates at 1MHz with 92% efficiency and a low 20uA quiescent current. Features include synchronous rectification, a 3.1V minimum input voltage, and operation across a -40°C to 85°C temperature range. Packaged in a 16-pin VQFN EP for surface mount termination, this RoHS compliant component is supplied on tape and reel.
Frequency1MHz
PackageVQFN EP
Quick Jump:
Technical Specifications
Texas Instruments TPS62112RSAT technical specifications.
General
Package/Case
VQFN EP
Efficiency
92%
Frequency
1MHz
Lead Free
Lead Free
Max Input Voltage
17V
Min Input Voltage
3.1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
5V
Min Output Voltage
5V
Max Supply Voltage
17V
Min Supply Voltage
3.1V
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
20uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Termination
SMD/SMT
Weight
0.001623oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS62112RSAT Datasheet
Download the complete datasheet for Texas Instruments TPS62112RSAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

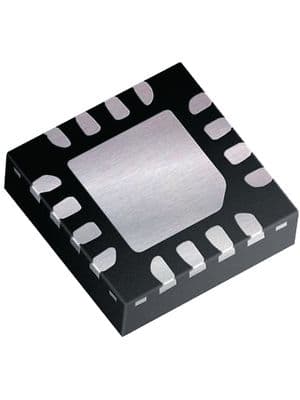

Product Images
