1A synchronous step-down converter with DCS-Control™ technology, featuring a 3V to 17V input voltage range and adjustable output voltage from 900mV to 6V. This power management IC delivers up to 1A output current and operates with a quiescent current of 17µA. Packaged in an 8-WSON (2.1mm x 2.1mm x 0.75mm) with lead-free and RoHS compliance, it operates across a wide temperature range of -40°C to 125°C.
PackageSOIC
Quick Jump:
Technical Specifications
Texas Instruments TPS62160DSGT technical specifications.
General
Package/Case
SOIC
Height
0.75mm
Lead Free
Lead Free
Length
2.1mm
Max Input Voltage
17V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
6V
Min Output Voltage
900mV
Number of Outputs
1
Operating Supply Voltage
17V
Output Current
1A
Output Type
Adjustable
Output Voltage
6V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
17uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DCS-Control™
Synchronous Rectifier
Yes
Width
2.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS62160DSGT Datasheet
Download the complete datasheet for Texas Instruments TPS62160DSGT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

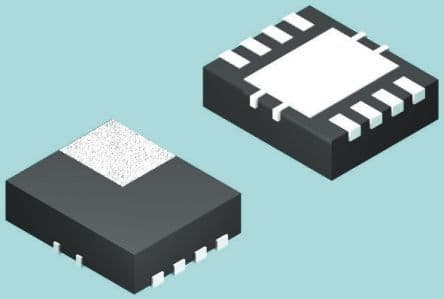

Product Images
