1A, 1.8V fixed output step-down converter with DCS-Control™ technology. Features a 3V to 17V input voltage range and a 1A maximum output current. Operates from -40°C to 125°C with a low 17µA quiescent current. Packaged in an 8-WSON, lead-free, RoHS compliant component.
PackageSOIC
Quick Jump:
Technical Specifications
Texas Instruments TPS62161DSGT technical specifications.
General
Package/Case
SOIC
Height
0.75mm
Lead Free
Lead Free
Length
2.1mm
Max Input Voltage
17V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
1.8V
Min Output Voltage
1.8V
Number of Outputs
1
Operating Supply Voltage
17V
Output Current
1A
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
17uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
DCS-Control™
Synchronous Rectifier
Yes
Width
2.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS62161DSGT Datasheet
Download the complete datasheet for Texas Instruments TPS62161DSGT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

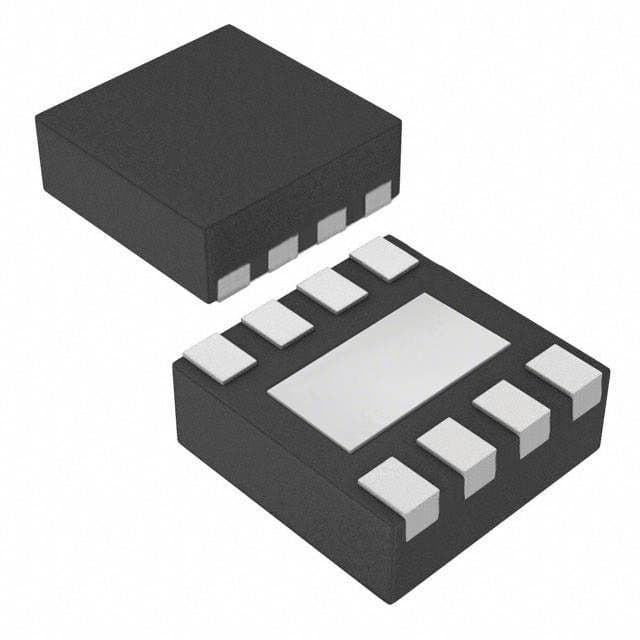

Product Images
