Step-down converter with a 3V to 17V input range and 500mA maximum output current. Features a fixed 5V output voltage and operates with a 17V supply. This synchronous rectifier IC boasts a low 17µA quiescent current. Packaged in a compact 2x2mm QFN, it operates from -40°C to 125°C and is RoHS compliant.
Quick Jump:
Technical Specifications
Texas Instruments TPS62173DSGT technical specifications.
General
Height
0.75mm
Lead Free
Lead Free
Length
2.1mm
Max Input Voltage
17V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
5V
Min Output Voltage
5V
Nominal Output Voltage
5V
Number of Outputs
1
Operating Supply Voltage
17V
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
17uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DCS-Control™
Synchronous Rectifier
Yes
Width
2.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS62173DSGT Datasheet
Download the complete datasheet for Texas Instruments TPS62173DSGT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

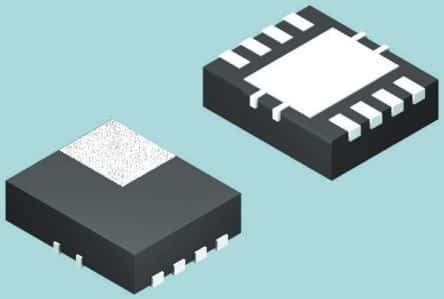

Product Images
