This 28V, 0.5A step-down converter, featuring SNOOZE Mode, operates from a 4.75V to 28V input range, delivering an adjustable output voltage from 1V up to 6V. With a maximum output current of 500mA, this surface mount component boasts a low quiescent current of 4.8µA and a synchronous rectifier for efficient power conversion. The integrated circuit is housed in a compact 10-WSON package measuring 3.1mm x 2.1mm x 0.75mm, suitable for operation across a wide temperature range of -40°C to 85°C. This RoHS compliant device utilizes a Buck-Boost topology and is supplied on tape and reel.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS62175DQCR technical specifications.
General
Height
0.75mm
Lead Free
Lead Free
Length
3.1mm
Max Input Voltage
28V
Min Input Voltage
4.75V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
6V
Min Output Voltage
1V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of Outputs
1
Output Current
500mA
Output Type
Adjustable
Output Voltage
6V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
4.8uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DCS-Control™
Synchronous Rectifier
Yes
Topology
Buck-Boost
Width
2.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS62175DQCR Datasheet
Download the complete datasheet for Texas Instruments TPS62175DQCR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

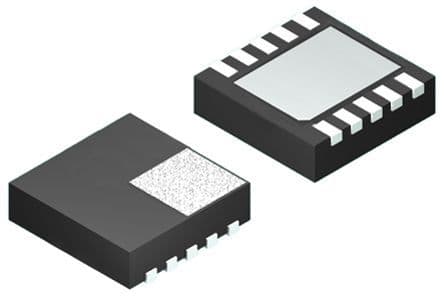

Product Images
