Texas Instruments
TPS62223DDCR
2.3-V Output, 400-mA, 95% Efficient Step-Down Converter, 15uA, ThinSOT-23 5-SOT-23-THIN -40 to 85

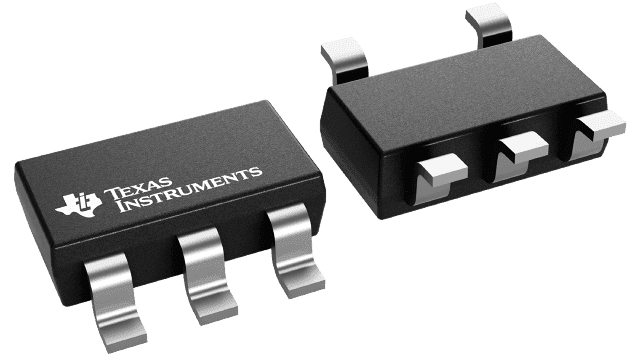

PackageSOT-23-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS62223DDCR technical specifications.
General
Package/Case
SOT-23-5
Efficiency
95%
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
400mA
Min Output Voltage
2.3V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
6V
Output Configuration
Positive
Output Current
400mA
Output Type
Fixed
Output Voltage
2.3V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
15uA
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Weight
0.000222oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS62223DDCR Datasheet
Download the complete datasheet for Texas Instruments TPS62223DDCR to view detailed technical specifications.
