Texas Instruments
TPS62224DDCT
1.6-V Output, 400-mA, 95% Efficient Step-Down Converter, 15uA, ThinSOT-23 5-SOT-23-THIN -40 to 85
PackageSOT-23-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS62224DDCT technical specifications.
General
| Package/Case | SOT-23-5 |
| Efficiency | 95% |
| Lead Free | Lead Free |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 400mA |
| Mount | Surface Mount |
| Nominal Output Voltage | 1.6V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 6V |
| Output Current | 400mA |
| Output Type | Fixed |
| Output Voltage | 1.6V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 15uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Weight | 0.000222oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS62224DDCT Datasheet
Download the complete datasheet for Texas Instruments TPS62224DDCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

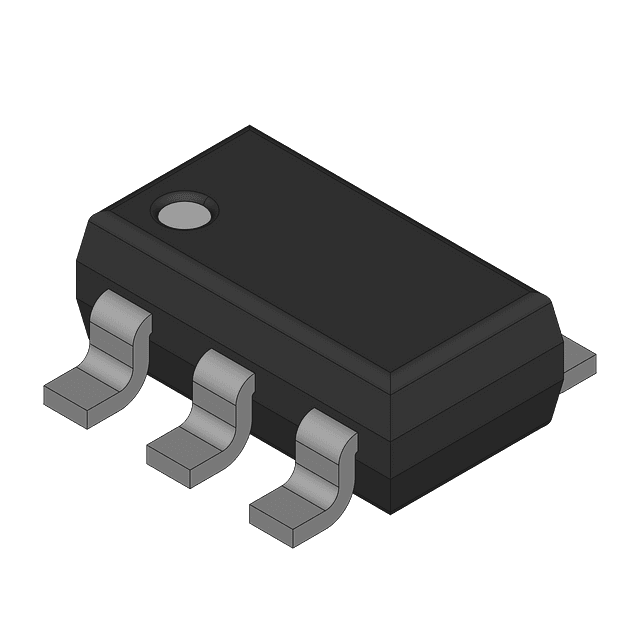

Product Images
