The TPS62238DC/DC controller operates from a 6V input voltage and regulates an output voltage of 2.25V with a maximum output current of 500mA. It features a high efficiency of 94% and a low quiescent current of 22uA. The device is packaged in a SON-6 package and is RoHS compliant. It is suitable for use in applications where a low output voltage is required, such as in low-voltage systems or in systems where a high level of power density is needed.
PackageSON
Quick Jump:
Technical Specifications
Texas Instruments TPS62238DRYR technical specifications.
General
| Package/Case | SON |
| Efficiency | 94% |
| Lead Free | Lead Free |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.05V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 2.25V |
| Min Output Voltage | 2.25V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 6V |
| Output Configuration | Positive |
| Output Current | 500mA |
| Output Type | Fixed |
| Output Voltage | 2.25V |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Quiescent Current | 22uA |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS62238DRYR Datasheet
Download the complete datasheet for Texas Instruments TPS62238DRYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

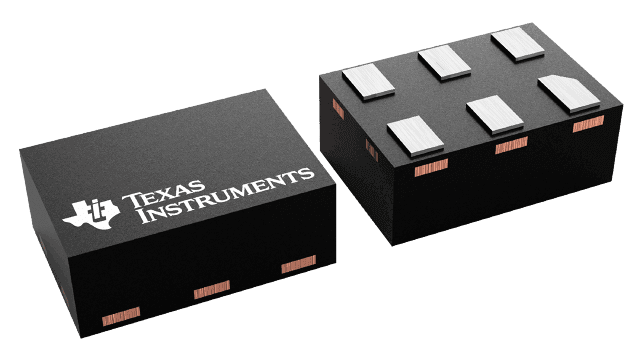

Product Images
