Texas Instruments
TPS62242DRVR
1.2V / 300mA Step-Down Converter in 2x2mm SON/TSOT23 Package 6-WSON -40 to 85
Quick Jump:
Technical Specifications
Texas Instruments TPS62242DRVR technical specifications.
General
| Lead Free | Lead Free |
| Max Input Voltage | 6V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 300mA |
| Max Output Voltage | 6V |
| Min Output Voltage | 600mV |
| Nominal Supply Current | 15uA |
| Number of Outputs | 1 |
| Operating Supply Voltage | 6V |
| Output Current | 300mA |
| Output Type | Fixed |
| Output Voltage | 1.2V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 15uA |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Weight | 0.000342oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS62242DRVR Datasheet
Download the complete datasheet for Texas Instruments TPS62242DRVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

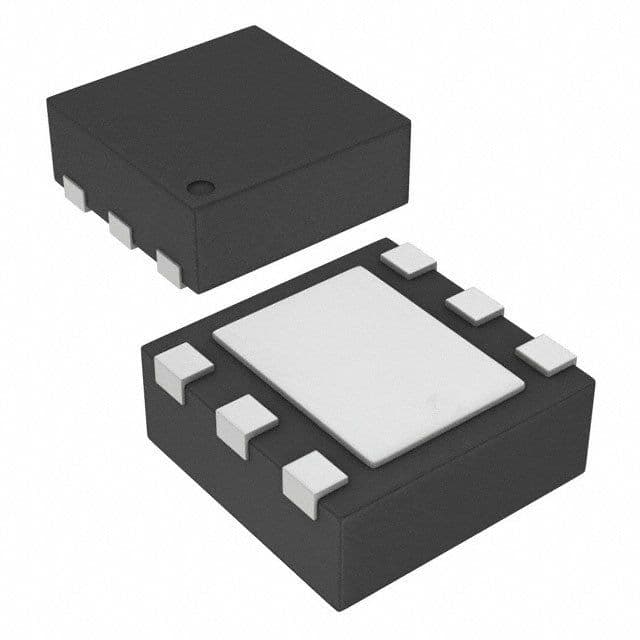

Product Images
