Texas Instruments
TPS62262TDRVRQ1
Automotive 2V to 6V, 2.25MHz Fixed Frequency 600mA Buck Converter with 1.2V Fixed Output Voltage 6-WSON -40 to 105
PackageSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS62262TDRVRQ1 technical specifications.
General
| Package/Case | SON |
| Lead Free | Lead Free |
| Max Input Voltage | 6V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 600mA |
| Min Output Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 6V |
| Output Configuration | Positive |
| Output Current | 600mA |
| Output Type | Fixed |
| Output Voltage | 1.2V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 15uA |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Synchronous Rectifier | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS62262TDRVRQ1 Datasheet
Download the complete datasheet for Texas Instruments TPS62262TDRVRQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

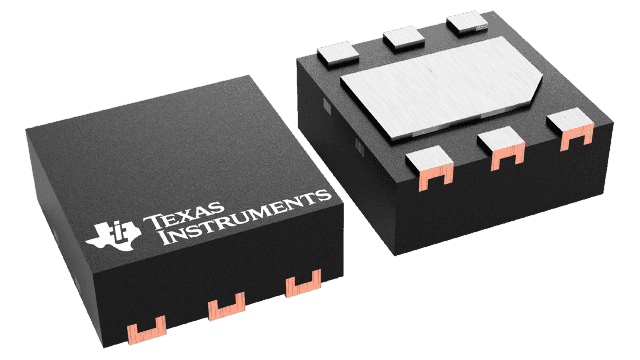

Product Images
