Texas Instruments
TPS62351YZGT
1A, 3MHz Buck Converter with I<sup>2</sup>C for Dynamic Voltage Scaling 12-DSBGA -40 to 85
Frequency3MHz
Quick Jump:
Technical Specifications
Texas Instruments TPS62351YZGT technical specifications.
General
| Frequency | 3MHz |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 800mA |
| Max Output Voltage | 1.6875V |
| Min Output Voltage | 900mV |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 800mA |
| Output Type | Adjustable (Programmable), Adjustable |
| Output Voltage | 1.69V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 28uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS62351YZGT Datasheet
Download the complete datasheet for Texas Instruments TPS62351YZGT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

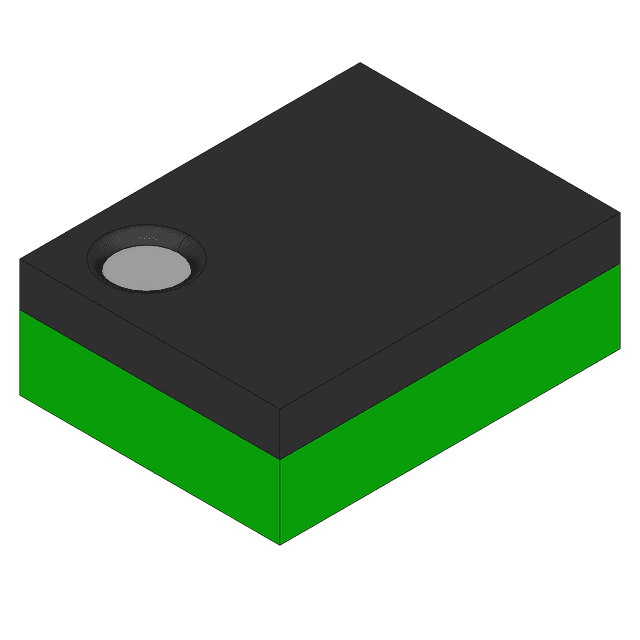

Product Images
