1A, 3MHz synchronous buck converter, ideal for dynamic voltage scaling applications. Features an adjustable output voltage range of 1.15V to 1.54V, capable of delivering up to 800mA of output current. Operates from a 2.7V to 5.5V input voltage, achieving up to 88% efficiency. Includes I²C interface for control and operates within a temperature range of -40°C to 85°C. Packaged in a VSON surface-mount case.
PackageVSON
MountingSurface Mount
Power2.05W
Quick Jump:
Technical Specifications
Texas Instruments TPS62355DRCR technical specifications.
General
Package/Case
VSON
Efficiency
88%
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Max Output Voltage
1.54V
Min Output Voltage
1.15V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
5.5V
Output Configuration
Positive
Output Current
800mA
Output Power
2.05W
Output Type
Adjustable (Programmable)
Output Voltage
1.5375V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
28uA
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Weight
0.000921oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS62355DRCR Datasheet
Download the complete datasheet for Texas Instruments TPS62355DRCR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

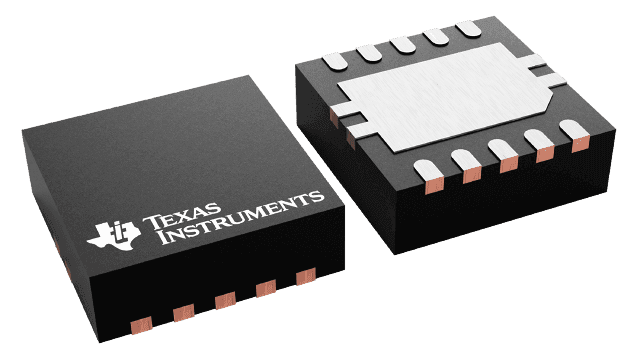

Product Images
