The TPS62651YFFR is a DC/DC controller with an efficiency of 86%. It operates within a temperature range of -40°C to 85°C and is RoHS compliant. This device features a synchronous rectifier and adjustable output voltage, programmable between 1.1V and 1.44V. The TPS62651YFFR is available in a VFBGA package, suitable for surface mount applications, and is packaged in tape and reel with 3000 units per reel.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS62651YFFR technical specifications.
General
| Efficiency | 86% |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 800mA |
| Max Output Voltage | 1.44V |
| Min Output Voltage | 1.1V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 800mA |
| Output Type | Adjustable (Programmable) |
| Output Voltage | 1.4375V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 38uA |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS62651YFFR Datasheet
Download the complete datasheet for Texas Instruments TPS62651YFFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

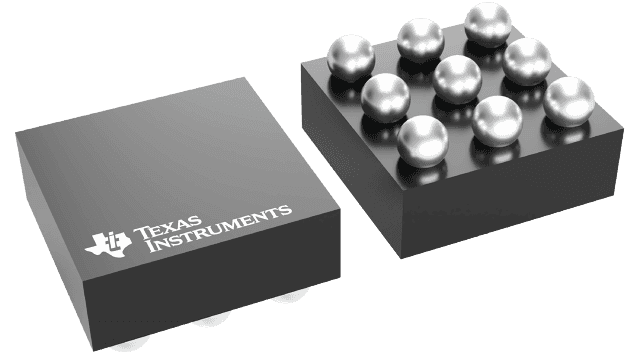

Product Images
