High-efficiency, 1.2A synchronous buck-boost converter with adjustable output voltage up to 5.5V. Features 96% peak efficiency, 40µA quiescent current, and operates from 1.8V to 5.5V input. Packaged in a compact 3x3mm SON for space-constrained applications, with a wide operating temperature range of -40°C to 85°C.
PackageSON
Quick Jump:
Technical Specifications
Texas Instruments TPS63000DRCT technical specifications.
General
Package/Case
SON
Efficiency
96%
Height
0.9mm
Lead Free
Lead Free
Length
3mm
Max Input Voltage
5.5V
Min Input Voltage
1.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.2A
Max Output Voltage
5.5V
Min Output Voltage
1.2V
Number of Outputs
1
Operating Supply Voltage
5.5V
Output Current
1.2A
Output Type
Adjustable
Output Voltage
5.5V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
40uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Topology
Buck-Boost
Weight
0.000921oz
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS63000DRCT Datasheet
Download the complete datasheet for Texas Instruments TPS63000DRCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

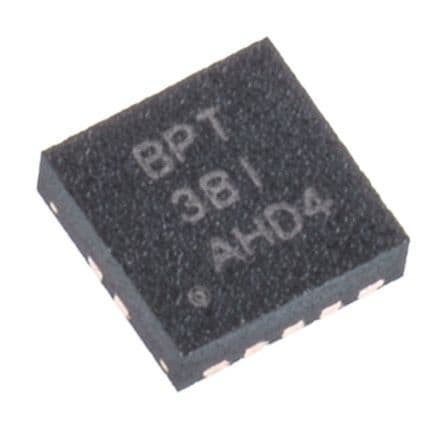

Product Images
