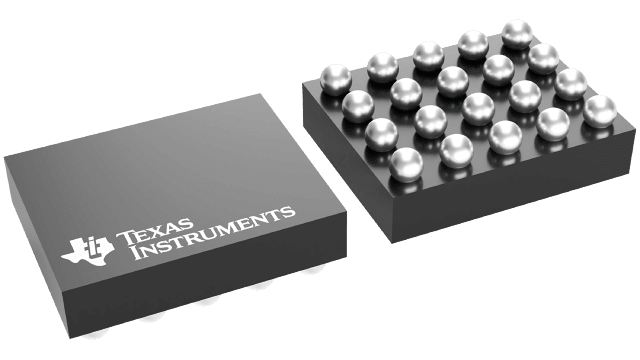

The TPS630251YFFR is a buck-boost DC/DC controller from Texas Instruments. It operates from an input voltage range of 2.3V to 5.5V and provides a fixed output voltage of 2.9V at up to 3.5A. The device is suitable for surface mount applications and has a maximum operating temperature of 85°C. It is RoHS compliant and features a synchronous rectifier for high efficiency, with a reported efficiency of 97%. The TPS630251YFFR is available in a tape and reel packaging with 3000 units per package.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS630251YFFR technical specifications.
General
| Efficiency | 97% |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 2.9V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5.5V |
| Output Configuration | Positive |
| Output Current | 3.5A |
| Output Type | Fixed |
| Output Voltage | 2.9V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 35uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Buck-Boost |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS630251YFFR Datasheet
Download the complete datasheet for Texas Instruments TPS630251YFFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
