Texas Instruments
TPS630251YFFT
4A switch Single-Inductor Buck-Boost Converter in WCSP 20-DSBGA -40 to 125
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS630251YFFT technical specifications.
General
| Efficiency | 97% |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 2.9V |
| Mount | Surface Mount |
| Nominal Output Voltage | 2.9V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5.5V |
| Output Configuration | Positive |
| Output Current | 2A |
| Output Type | Fixed |
| Output Voltage | 2.9V |
| Packaging | Tape and Reel |
| Quiescent Current | 35uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Buck-Boost |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS630251YFFT Datasheet
Download the complete datasheet for Texas Instruments TPS630251YFFT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

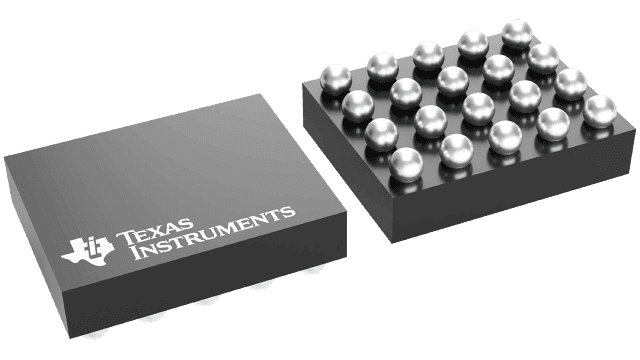

Product Images
