High-efficiency, single-inductor buck-boost converter for power management. Features a 1.8V to 5.5V input voltage range and delivers up to 800mA output current. Achieves up to 96% efficiency with a low 25µA quiescent current. Offers adjustable output voltage from 1.2V to 5.5V. Packaged in a 10-SON surface-mount case, suitable for operation between -40°C and 85°C.
PackageSON
Current50uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS63030DSKR technical specifications.
General
Package/Case
SON
Efficiency
96%
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
1.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Max Output Voltage
5.5V
Min Output Voltage
1.2V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
5.5V
Output Configuration
Positive
Output Current
800mA
Output Type
Adjustable
Output Voltage
5.5V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
25uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
50uA
Synchronous Rectifier
Yes
Topology
Buck-Boost
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS63030DSKR Datasheet
Download the complete datasheet for Texas Instruments TPS63030DSKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

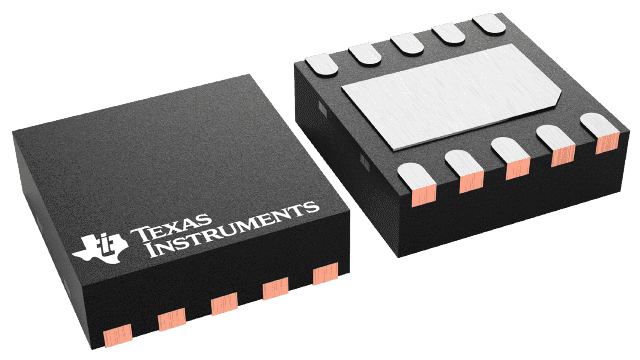

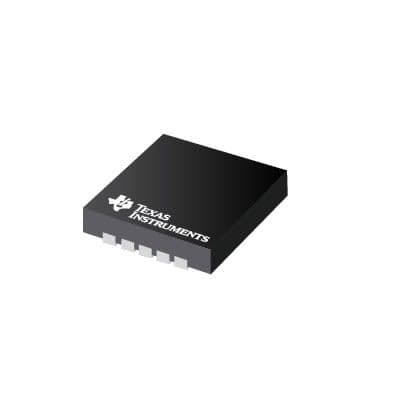

Product Images
