Single inductor buck-boost converter, ideal for power management applications. Features a 2.5V to 5.5V input voltage range and provides a fixed 3.3V output voltage with up to 500mA current. Operates across a wide temperature range of -40°C to 85°C, with a low quiescent current of 45µA. This surface-mount component is housed in a compact 1.16mm x 2mm x 0.625mm package, suitable for tape and reel packaging.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS63051YFFT technical specifications.
General
Height
625um
Lead Free
Lead Free
Length
2mm
Max Input Voltage
5.5V
Min Input Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
3.3V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
5.5V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
45uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Thickness
1.6mm
Topology
Buck-Boost
Width
1.16mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS63051YFFT Datasheet
Download the complete datasheet for Texas Instruments TPS63051YFFT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

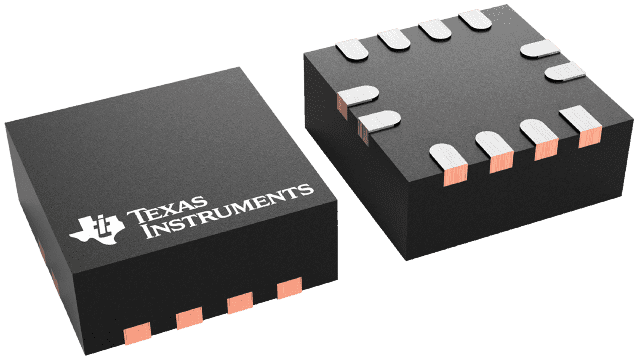

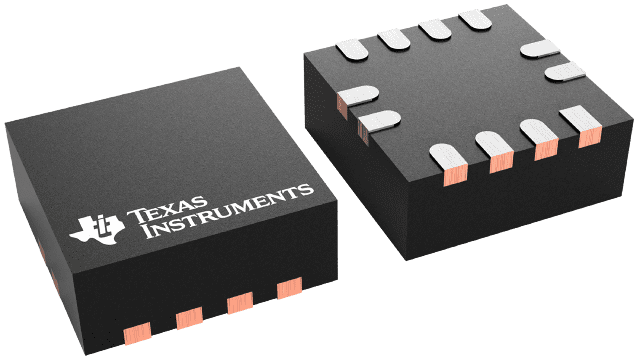

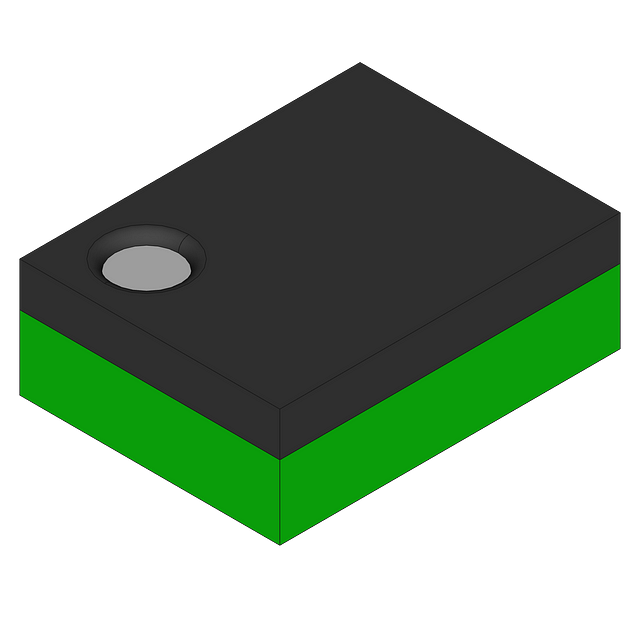

Product Images
