Texas Instruments
TPS63060MDSCTEP
HIGH INPUT VOLTAGE BUCK-BOOST CONVERTER WITH 2-A SWITCH CURRENT 10-WSON -55 to 125
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS63060MDSCTEP technical specifications.
General
| Efficiency | 93% |
| Lead Free | Lead Free |
| Max Input Voltage | 12V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 1A |
| Max Output Voltage | 8V |
| Min Output Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 2A |
| Output Type | Adjustable |
| Output Voltage | 8V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 30uA |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Buck-Boost |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS63060MDSCTEP Datasheet
Download the complete datasheet for Texas Instruments TPS63060MDSCTEP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

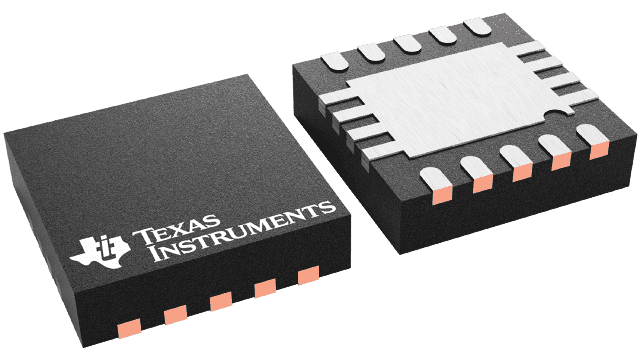

Product Images
