Inverting DC/DC converter with an adjustable output voltage ranging from -2V to -15V. Features a maximum output current of 360mA and operates with an input voltage range of 2.7V to 5.5V. Achieves up to 84% efficiency at a 1.38MHz switching frequency. Packaged in a 3x3 QFN 10-VSON for surface-mount termination. Suitable for operation across a wide temperature range of -40°C to 85°C.
Frequency1.38MHz
PackageVSON
Quick Jump:
Technical Specifications
Texas Instruments TPS63700DRCT technical specifications.
General
Package/Case
VSON
Efficiency
84%
Frequency
1.38MHz
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
360mA
Max Output Voltage
-2V
Min Output Voltage
-15V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Outputs
1
Output Current
360mA
Output Type
Adjustable
Output Voltage
-2V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
970uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Termination
SMD/SMT
Topology
Buck-Boost
Weight
0.000921oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS63700DRCT Datasheet
Download the complete datasheet for Texas Instruments TPS63700DRCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

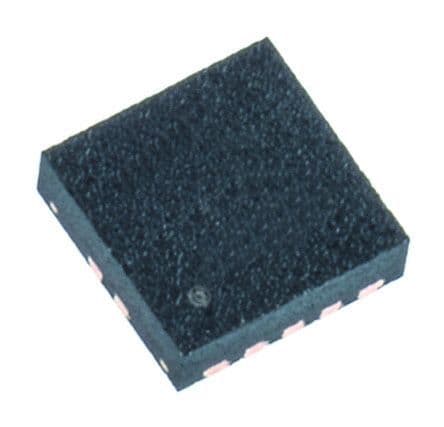

Product Images
