Adjustable negative output buck-boost DC/DC controller and regulator IC. Features a 2.7V to 5.5V input voltage range and an adjustable output voltage from -2V to -15V. Delivers up to 360mA output current with 84% efficiency. Operates from -40°C to 85°C in a VSON package.
PackageVSON
Quick Jump:
Technical Specifications
Texas Instruments TPS63700DRCTG4 technical specifications.
General
Package/Case
VSON
Efficiency
84%
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
360mA
Max Output Voltage
-2V
Min Output Voltage
-15V
Number of Outputs
1
Operating Supply Voltage
5.5V
Output Configuration
Negative
Output Current
360mA
Output Type
Adjustable
Output Voltage
-2V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
970uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Topology
Buck-Boost
Weight
0.000921oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS63700DRCTG4 Datasheet
Download the complete datasheet for Texas Instruments TPS63700DRCTG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

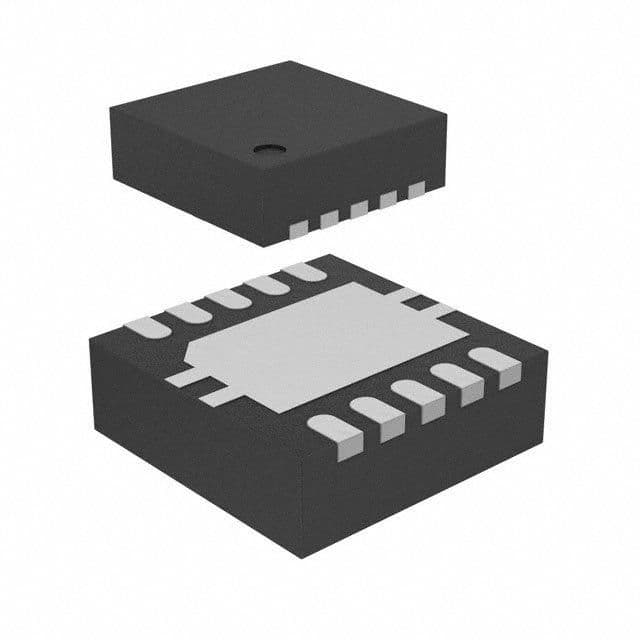

Product Images
