Texas Instruments
TPS65056RSMR
6-channel Power Management IC (PMIC) with 2 DC/DCs, 4 LDOs, in 4x4mm QFN 32-VQFN -40 to 85
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments TPS65056RSMR technical specifications.
General
| Package/Case | VQFN |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Operating Supply Current | 1.25mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 2.4mA |
| RoHS Compliant | Yes |
| Series | TPS65056 |
| Weight | 0.00157oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS65056RSMR Datasheet
Download the complete datasheet for Texas Instruments TPS65056RSMR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

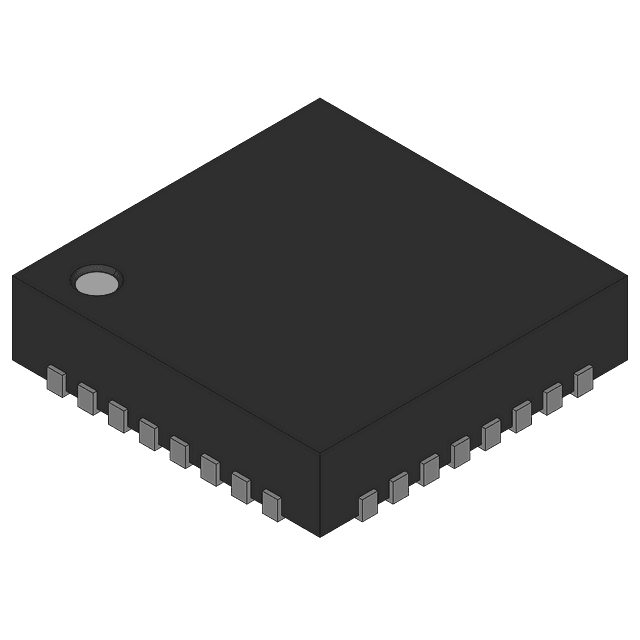

Product Images
