High-current, synchronous step-down three buck switcher with integrated FETs. Features three outputs with up to 3A and 2A current capability, adjustable or fixed output voltages from 800mV to 18V, and a wide input voltage range of 4.5V to 18V. Surface mountable in a VQFN package, this power management IC operates from -40°C to 125°C and is RoHS compliant.
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS65251RHAT technical specifications.
General
Package/Case
VQFN
Current - Output 1
3A
Current - Output 2
2A
Height
0.9mm
Lead Free
Lead Free
Length
6mm
Max Input Voltage
18V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
18V
Min Output Voltage
800mV
Mount
Surface Mount
Number of Outputs
3
Operating Supply Current
20mA
Output Configuration
Positive
Output Current
2A
Output Type
Adjustable, Fixed
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
20mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Weight
0.003668oz
Width
6.15mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS65251RHAT Datasheet
Download the complete datasheet for Texas Instruments TPS65251RHAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

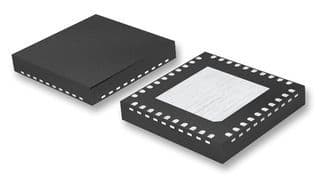

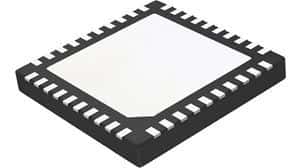

Product Images
