Texas Instruments
TPS65273VDAPR
4.5V to 18V Input, 3.5A/3.5A Dual Synchronous Step-down Converter with I<sup>2</sup>C Controlled VID 32-HTSSOP -40 to 125
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS65273VDAPR technical specifications.
General
| Package/Case | HTSSOP |
| Lead Free | Lead Free |
| Max Input Voltage | 18V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3.5A |
| Max Output Voltage | 1.95V |
| Min Output Voltage | 680mV |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Output Configuration | Positive |
| Output Current | 3.5A |
| Output Type | Adjustable |
| Output Voltage | 1.96V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Quiescent Current | 10mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS65273VDAPR Datasheet
Download the complete datasheet for Texas Instruments TPS65273VDAPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

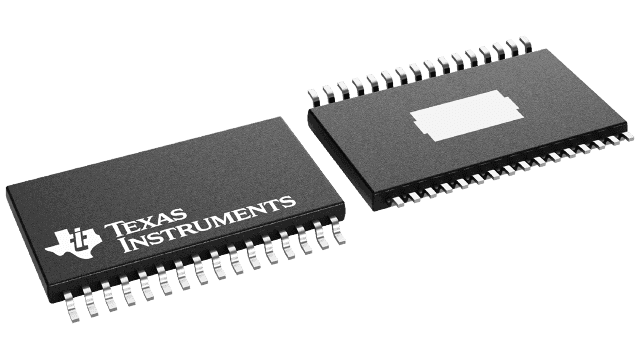

Product Images
