150mA, 3.3V fixed output positive linear voltage regulator with 960mV dropout voltage. Features ultra-low quiescent current, 30V maximum input voltage, and 2% accuracy. Includes reverse current protection and an enable pin. Operates from -40°C to 125°C in a 6-WSON surface mount package. Offers 150dB power supply rejection ratio.
PackageSON
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS70933DRVT technical specifications.
General
Accuracy
2%
Package/Case
SON
Dropout Voltage
960mV
Lead Free
Lead Free
Min Current Limit
200mA
Max Input Voltage
30V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
150mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
250
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
150dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.000342oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS70933DRVT Datasheet
Download the complete datasheet for Texas Instruments TPS70933DRVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

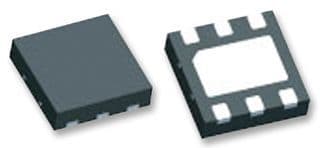

Product Images
