Dual-channel, 250mA low-dropout voltage regulator featuring a 1.8V fixed output voltage with 1.5% accuracy. This positive polarity regulator operates from a 2.7V to 5.5V input range, offering a low dropout voltage of 125mV. With a maximum output current of 200mA per channel and a quiescent current of 300µA, it is suitable for applications requiring efficient power management. The component is housed in a VSON package, designed for surface-mount termination, and operates across a wide temperature range of -40°C to 125°C.
PackageVSON
PolarityPositive
Power1.92W
Quick Jump:
Technical Specifications
Texas Instruments TPS71219DRCT technical specifications.
General
Accuracy
1.5%
Package/Case
VSON
Current - Output 1
250mA
Current - Output 2
250mA
Dropout Voltage
125mV
Input Bias Current
190uA
Lead Free
Lead Free
Min Current Limit
400mA
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Voltage
1.8V
Min Output Voltage
1.8V
Max Power Dissipation
1.92W
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Outputs
2
Number of Regulators
2
Output Current
250mA
Output Type
Fixed, Adjustable
Output Voltage
1.8V
Output Voltage Accuracy
1.5%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
1.92W
Quiescent Current
300uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
1.225V
RoHS Compliant
Yes
Termination
SMD/SMT
Voltage - Output 1
1.8V
Voltage - Output 2
5.5V
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS71219DRCT Datasheet
Download the complete datasheet for Texas Instruments TPS71219DRCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

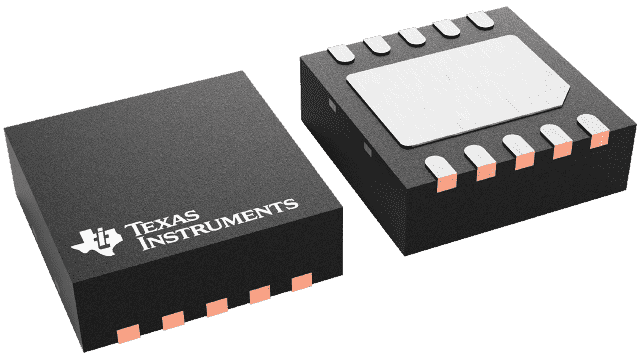

Product Images
