1-A, positive, fixed output linear voltage regulator with 1.5V nominal output voltage and 2% accuracy. Features a low 170mV dropout voltage and 70µA quiescent current. Operates from 1.8V to 6V input voltage, with a minimum current limit of 1.1A. Packaged in a 6-SOT-223, this lead-free component offers a wide operating temperature range of -40°C to 125°C. Includes an enable function and RESET output.
PackageSOT-223
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS72515DCQR technical specifications.
General
Accuracy
2%
Package/Case
SOT-223
Dropout Voltage
170mV
Input Bias Current
75uA
Lead Free
Lead Free
Length
6.5mm
Min Current Limit
1.1A
Max Input Voltage
6V
Min Input Voltage
1.8V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
1.5V
Min Output Voltage
1.5V
Nominal Output Voltage
1.5V
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Fixed
Output Voltage
1.5V
Output Voltage Accuracy
2%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
70uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
1.263V
RoHS Compliant
Yes
Thickness
1.6mm
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS72515DCQR Datasheet
Download the complete datasheet for Texas Instruments TPS72515DCQR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

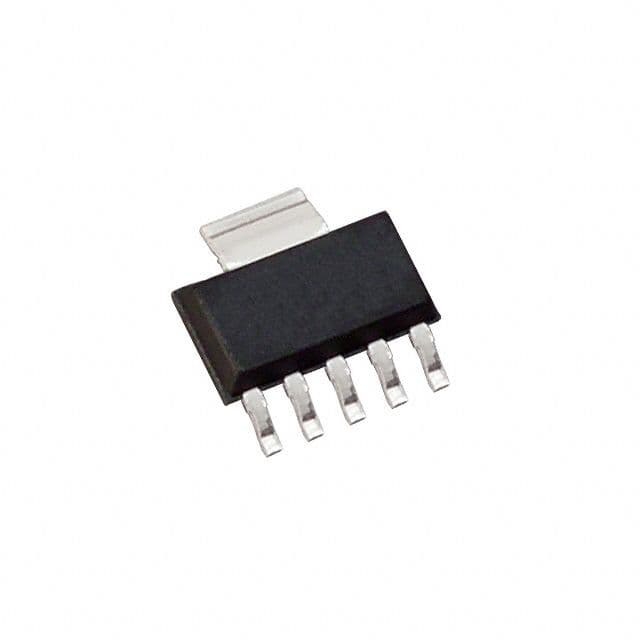

Product Images
