Ultra-low-IQ, 250-mA linear voltage regulator with a fixed 1.1V output. Features 1% accuracy, 9 µA quiescent current, and a maximum input voltage of 5.5V. Operates from -40°C to 125°C with a minimum input voltage of 2V. This positive output regulator offers a 250mA maximum output current and a 300mA minimum current limit. Housed in a compact 1.2mm x 1mm x 625µm DSBGA package, it is RoHS compliant and supplied on tape and reel.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS72711YFFR technical specifications.
General
Accuracy
1%
Height
625um
Lead Free
Lead Free
Length
1.2mm
Min Current Limit
300mA
Max Input Voltage
5.5V
Min Input Voltage
2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Min Output Voltage
1.1V
Max Power Dissipation
370mW
Max Supply Current
130uA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
250mA
Output Type
Fixed
Output Voltage
1.1V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
45dB
Quiescent Current
9uA
RoHS Compliant
Yes
Thickness
1.2mm
Width
1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS72711YFFR Datasheet
Download the complete datasheet for Texas Instruments TPS72711YFFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

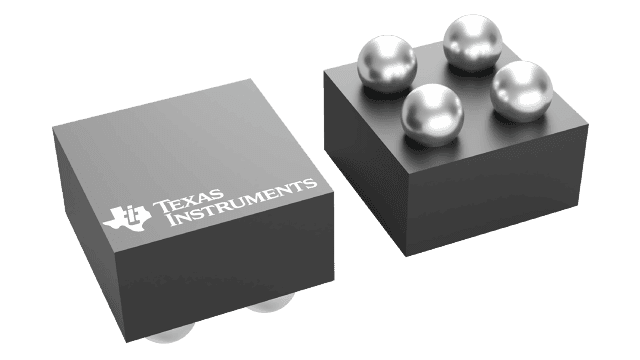

Product Images
