2.85V fixed positive LDO regulator with 200mA output current and 0.21V dropout voltage. Features 2% accuracy, 68dB PSRR, and 170µA quiescent current. Operates from 2.7V to 5.5V input, with a maximum power dissipation of 530mW. Packaged in a compact 1.35mm x 1mm x 0.45mm DSBGA-5, suitable for tape and reel packaging.
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS730285YZQT technical specifications.
General
Accuracy
2%
Height
0.45mm
Input Bias Current
170uA
Lead Free
Contains Lead
Length
1.35mm
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Voltage
2.85V
Min Output Voltage
2.85V
Max Power Dissipation
530mW
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
200mA
Output Type
Fixed
Output Voltage
2.85V
Package Quantity
250
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
68dB
Quiescent Current
170uA
Radiation Hardening
No
RoHS Compliant
Yes
Width
1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS730285YZQT Datasheet
Download the complete datasheet for Texas Instruments TPS730285YZQT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

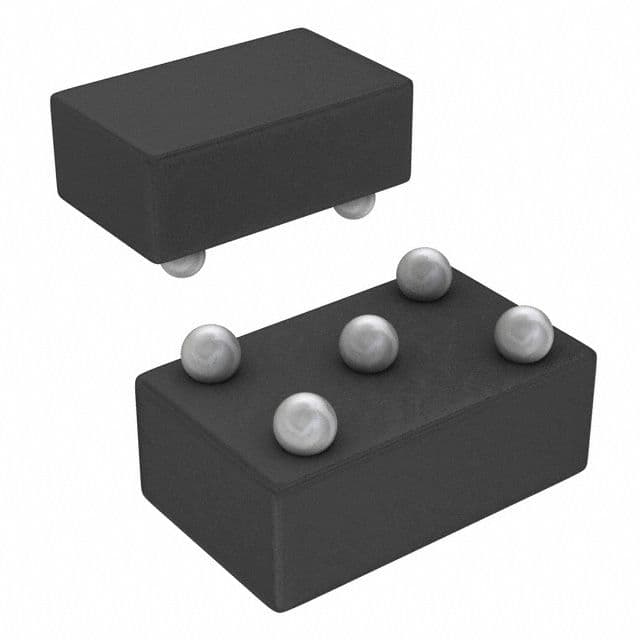

Product Images
