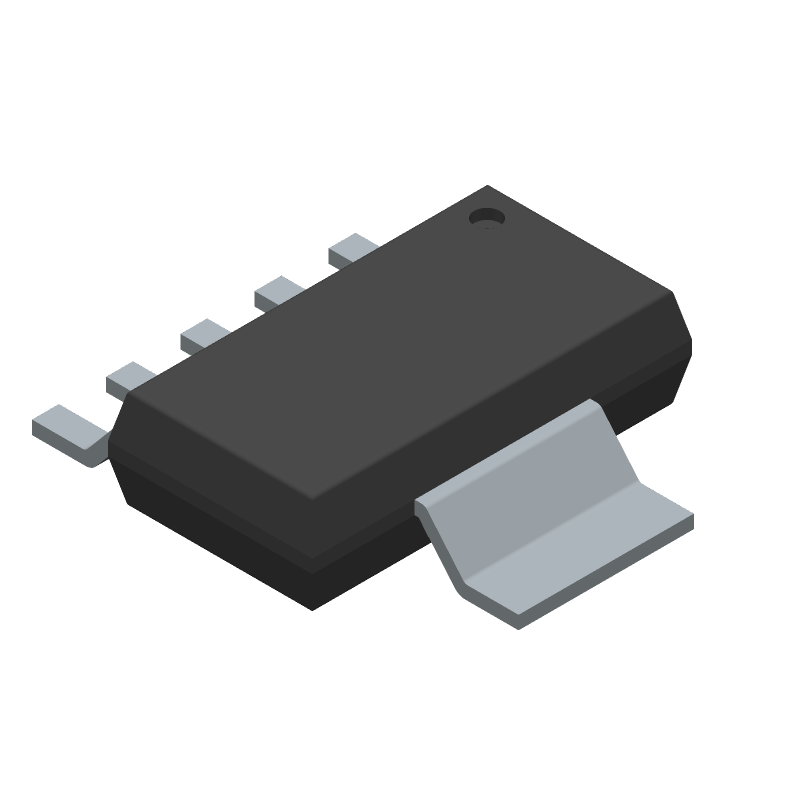

Ultra-low-dropout (LDO) voltage regulator, 250mA output current, featuring 0.5% output voltage accuracy and a low 40mV dropout voltage. Operates with a wide input voltage range from 1.7V to 5.5V, providing an adjustable output voltage up to 5.5V. Includes reverse current protection and an enable function. Packaged in a compact 6-SOT-223 surface-mount case with dimensions of 6.5mm x 3.5mm x 1.6mm. RoHS compliant and operates across an extended temperature range of -40°C to 125°C.
PackageSOT-223
PolarityPositive
Power2.22W
Quick Jump:
Technical Specifications
Texas Instruments TPS73201DCQ technical specifications.
General
Accuracy
1%
Package/Case
SOT-223
Dropout Voltage
40mV
Height
1.6mm
Input Bias Current
400uA
Lead Free
Lead Free
Length
6.5mm
Min Current Limit
250mA
Max Input Voltage
5.5V
Min Input Voltage
1.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Max Output Voltage
5.5V
Min Output Voltage
1.2V
Max Power Dissipation
2.22W
Number of Outputs
1
Number of Regulators
1
Output Current
250mA
Output Type
Adjustable
Output Voltage
5.5V
Output Voltage Accuracy
0.5%
Package Quantity
78
Packaging
Rail/Tube
Polarity
Positive
Power Dissipation
2.22W
Quiescent Current
400uA
Reach SVHC Compliant
No
Reference Voltage
1.2V
RoHS Compliant
Yes
Width
3.5mm
Compliance
RoHS
Compliant
