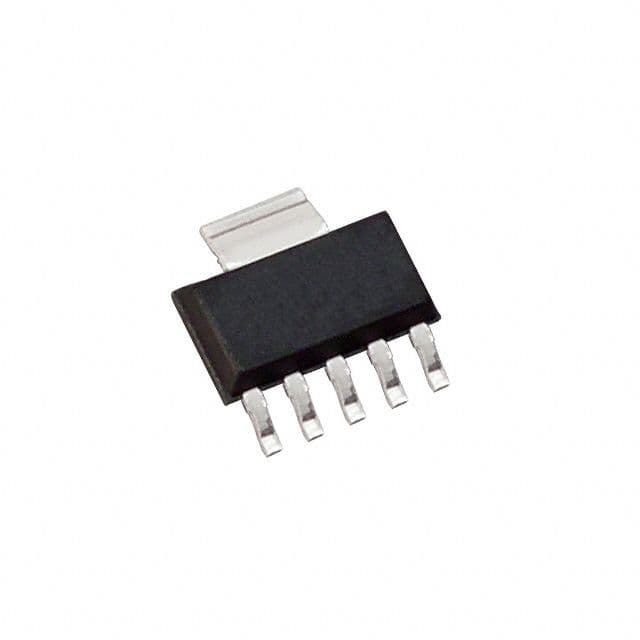

250mA Cap-Free NMOS Low Dropout Regulator with Reverse Current Protection. This positive adjustable linear voltage regulator offers a 1.7V to 5.5V input range and a 1.2V to 5.5V output range, with a maximum output current of 250mA. Features include 1% accuracy, 400µA quiescent current, and a Power Supply Rejection Ratio (PSRR) of 37dB. Operating across a -40°C to 125°C temperature range, this device is packaged in a 6-SOT-223 case.
PackageSOT-223-6
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS73201DCQG4 technical specifications.
General
Accuracy
1%
Package/Case
SOT-223-6
Input Bias Current
400uA
Lead Free
Contains Lead
Max Input Voltage
5.5V
Min Input Voltage
1.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Max Output Voltage
5.5V
Min Output Voltage
1.2V
Max Power Dissipation
2.22W
Max Supply Current
950uA
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
250mA
Output Type
Adjustable
Output Voltage
5.5V
Package Quantity
78
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
37dB
Quiescent Current
400uA
Radiation Hardening
No
Reference Voltage
1.2V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS73201DCQG4 Datasheet
Download the complete datasheet for Texas Instruments TPS73201DCQG4 to view detailed technical specifications.
