Texas Instruments
TPS73215DCQ
250-mA, high-accuracy, ultra-low-dropout voltage regulator with reverse current protection & enable 6-SOT-223 -40 to 125
PackageSOT-223-6
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS73215DCQ technical specifications.
General
Accuracy
1%
Package/Case
SOT-223-6
Input Bias Current
400uA
Lead Free
Lead Free
Min Current Limit
250mA
Max Input Voltage
5.5V
Min Input Voltage
1.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Max Output Voltage
1.5V
Min Output Voltage
1.5V
Max Power Dissipation
2.22W
Number of Outputs
1
Number of Regulators
1
Output Current
250mA
Output Type
Fixed
Output Voltage
1.5V
Package Quantity
78
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
400uA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS73215DCQ Datasheet
Download the complete datasheet for Texas Instruments TPS73215DCQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

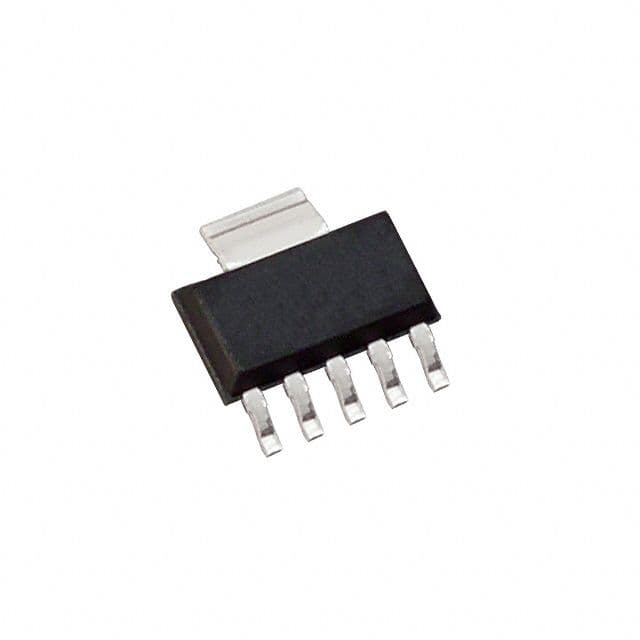

Product Images
