Ultra-low-dropout (LDO) voltage regulator, 250mA output current, 3.3V fixed output voltage with 0.5% accuracy. Features 40mV dropout voltage, 1.7V to 5.5V input voltage range, and 400uA quiescent current. Housed in a compact SOT-23 package, this positive polarity regulator offers reverse current protection and an enable function. Operating temperature range is -40°C to 125°C, with a maximum power dissipation of 560mW.
PackageSOT-23
PolarityPositive
Power560mW
Quick Jump:
Technical Specifications
Texas Instruments TPS73233DBVT technical specifications.
General
Accuracy
1%
Package/Case
SOT-23
Dropout Voltage
40mV
Height
1.15mm
Input Bias Current
400uA
Lead Free
Lead Free
Length
2.9mm
Min Current Limit
250mA
Max Input Voltage
5.5V
Min Input Voltage
1.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Max Power Dissipation
560mW
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
250mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
0.5%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
560mW
Quiescent Current
400uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS73233DBVT Datasheet
Download the complete datasheet for Texas Instruments TPS73233DBVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

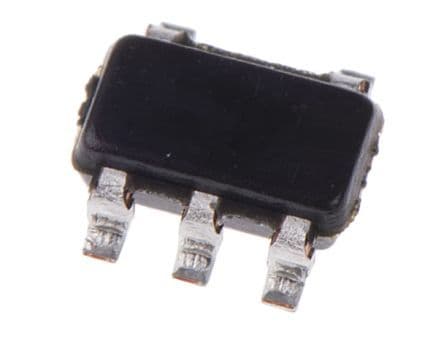

Product Images
