3.3V fixed output, positive linear voltage regulator (LDO) with 250mA output current. Features a low 40µA quiescent current and a 125mV dropout voltage at 250mA. Operates from a 2.7V to 6.5V input voltage range with a 2% accuracy. Packaged in a compact SOT-23-5, this lead-free component offers a wide operating temperature range of -40°C to 125°C.
PackageSOT-23-5
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS73433DDCT technical specifications.
General
| Accuracy | 2% |
| Package/Case | SOT-23-5 |
| Dropout Voltage | 125mV |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Input Voltage | 6.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Output Voltage | 3.3V |
| Min Output Voltage | 3.3V |
| Max Power Dissipation | 360mW |
| Nominal Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 250mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 28dB |
| Quiescent Current | 40uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 1.75mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS73433DDCT Datasheet
Download the complete datasheet for Texas Instruments TPS73433DDCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

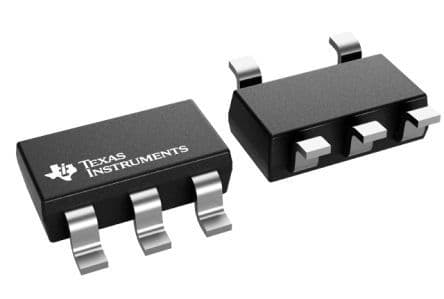

Product Images
