Ultra-low-dropout (LDO) voltage regulator, fixed 1.8V output, 400mA maximum output current. Features 75mV dropout voltage and 1% accuracy. Operates from 1.7V to 5.5V input voltage, with a maximum power dissipation of 2.22W. Housed in a 6-SOT-223 package, this positive polarity regulator offers reverse current protection and an enable function, operating across a -40°C to 125°C temperature range.
PackageSOT-223
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS73618DCQ technical specifications.
General
Accuracy
1%
Package/Case
SOT-223
Dropout Voltage
75mV
Input Bias Current
300uA
Lead Free
Lead Free
Min Current Limit
400mA
Max Input Voltage
5.5V
Min Input Voltage
1.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
400mA
Max Output Voltage
1.8V
Min Output Voltage
1.8V
Max Power Dissipation
2.22W
Nominal Output Voltage
1.8V
Number of Outputs
1
Number of Regulators
1
Output Current
400mA
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
78
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
300uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS73618DCQ Datasheet
Download the complete datasheet for Texas Instruments TPS73618DCQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

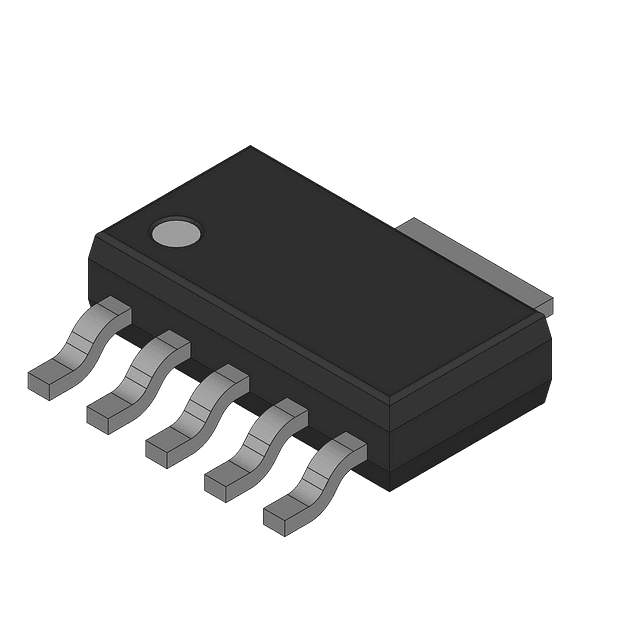

Product Images
