Ultra-low-dropout (LDO) linear voltage regulator, 400mA output current, 3.3V fixed output voltage with 0.5% accuracy. Features 75mV dropout voltage and 300µA quiescent current. Operates from 1.7V to 5.5V input voltage, with reverse current protection and enable functionality. Packaged in a 6-pin SOT-223, measuring 6.5mm x 3.5mm x 1.6mm, with an operating temperature range of -40°C to 125°C. RoHS compliant.
PackageSOT-223
PolarityPositive
Power2.22W
Quick Jump:
Technical Specifications
Texas Instruments TPS73633DCQ technical specifications.
General
Accuracy
1%
Package/Case
SOT-223
Dropout Voltage
75mV
Height
1.6mm
Input Bias Current
300uA
Lead Free
Lead Free
Length
6.5mm
Min Current Limit
400mA
Max Input Voltage
5.5V
Min Input Voltage
1.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
400mA
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Max Power Dissipation
2.22W
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
400mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
0.5%
Package Quantity
78
Packaging
Rail/Tube
Polarity
Positive
Power Dissipation
2.22W
Quiescent Current
300uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Thickness
1.6mm
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS73633DCQ Datasheet
Download the complete datasheet for Texas Instruments TPS73633DCQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

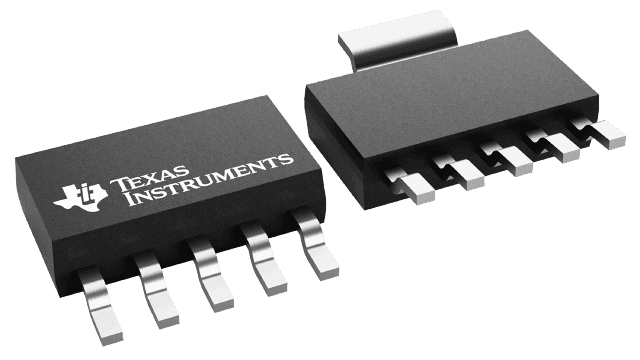

Product Images
