1-A, ultra-low-dropout linear voltage regulator with reverse current protection and enable functionality. Features a fixed 2.5V output voltage with 3% accuracy and a low dropout voltage of 130mV. Operates with input voltages from 2.2V to 5.5V, delivering up to 1A output current. Packaged in a 6-SOT-223 case, this positive polarity regulator offers a wide operating temperature range of -40°C to 125°C and is RoHS compliant.
PackageSOT-223-6
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS73725DCQ technical specifications.
General
Accuracy
3%
Package/Case
SOT-223-6
Dropout Voltage
130mV
Lead Free
Lead Free
Length
6.5mm
Min Current Limit
1.05A
Max Input Voltage
5.5V
Min Input Voltage
2.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
2.5V
Min Output Voltage
2.5V
Max Power Dissipation
2.22W
Nominal Output Voltage
2.5V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
78
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
300uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Thickness
1.6mm
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS73725DCQ Datasheet
Download the complete datasheet for Texas Instruments TPS73725DCQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

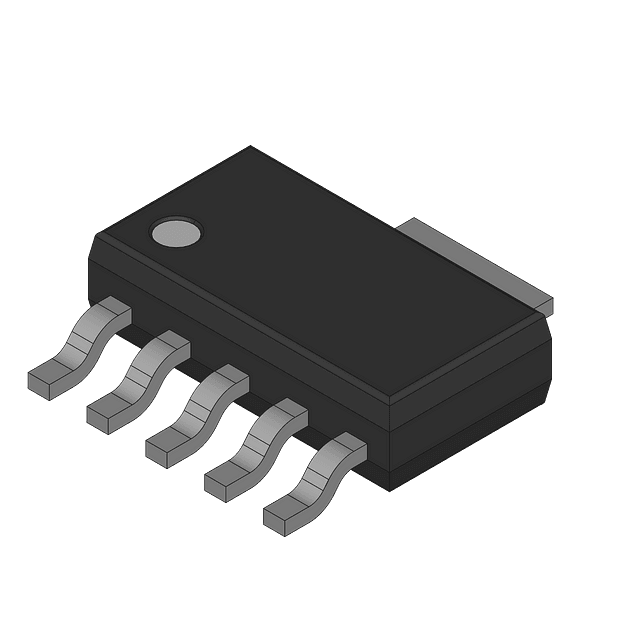

Product Images
