Adjustable ultra-low-dropout linear voltage regulator, offering 500mA maximum output current. Features a minimum input voltage of 800mV and a maximum input voltage of 5.5V. Dropout voltage is a low 50mV. Provides an adjustable output voltage range from 800mV to 3.6V with 0.5% output voltage accuracy. Includes power good and enable functions. Operates within a temperature range of -40°C to 125°C and is packaged in a SON case.
PackageSON
PolarityPositive
Power1.92W
Quick Jump:
Technical Specifications
Texas Instruments TPS74701DRCT technical specifications.
General
Accuracy
2%
Package/Case
SON
Dropout Voltage
50mV
Lead Free
Lead Free
Min Current Limit
800mA
Max Input Voltage
5.5V
Min Input Voltage
800mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
3.6V
Min Output Voltage
800mV
Max Power Dissipation
1.92W
Number of Outputs
1
Number of Regulators
1
Output Current
500mA
Output Type
Adjustable
Output Voltage
3.6V
Output Voltage Accuracy
0.5%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
1.92W
Quiescent Current
1mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
804mV
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS74701DRCT Datasheet
Download the complete datasheet for Texas Instruments TPS74701DRCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

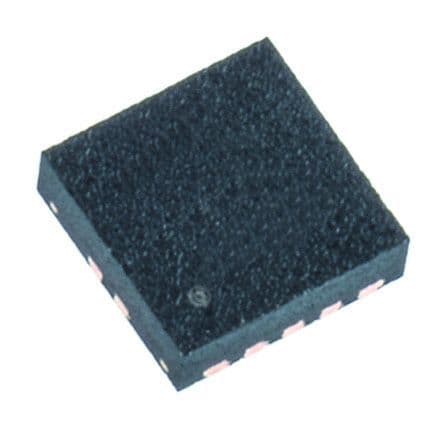

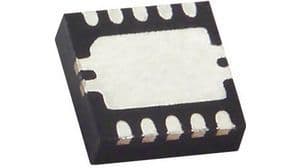

Product Images
