Power Management IC featuring a 3A maximum output current and adjustable output voltage up to 6.5V. Input voltage range spans from 2.2V to 6.5V, with a maximum supply voltage of 6.5V. Achieves 95% efficiency and operates with a low quiescent current of 75µA. Housed in a compact 3.65mm x 4.5mm x 0.9mm VQFN package, this RoHS compliant component is supplied on tape and reel.
PackageVQFN
Power2.27W
Quick Jump:
Technical Specifications
Texas Instruments TPS75003RHLT technical specifications.
General
Package/Case
VQFN
Efficiency
95%
Height
0.9mm
Lead Free
Lead Free
Length
4.5mm
Max Input Voltage
6.5V
Min Input Voltage
2.2V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
6.5V
Max Power Dissipation
2.27W
Max Supply Voltage
6.5V
Min Supply Voltage
2.2V
Number of Outputs
1
Operating Supply Current
75uA
Output Current
3A
Output Type
Adjustable
Output Voltage
6.5V
Package Quantity
250
Packaging
Tape and Reel
Power Dissipation
2.27W
Quiescent Current
75uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.001598oz
Width
3.65mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS75003RHLT Datasheet
Download the complete datasheet for Texas Instruments TPS75003RHLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

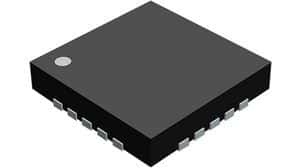

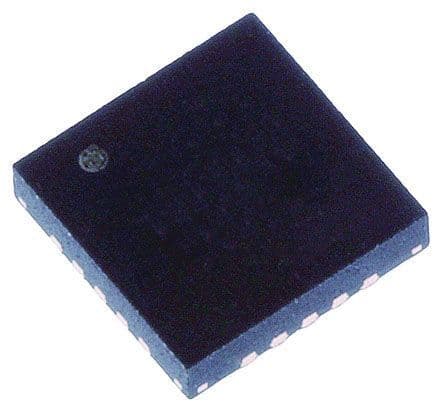

Product Images
