Texas Instruments
TPS75005RGWR
Dual, 500-mA low-dropout regulators & triple voltage rail monitor 20-VQFN -40 to 125
PackageVQFN EP
Quick Jump:
Technical Specifications
Texas Instruments TPS75005RGWR technical specifications.
General
| Package/Case | VQFN EP |
| Dropout Voltage | 300mV |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Input Voltage | 6.5V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 3.3V |
| Min Output Voltage | 3.3V |
| Operating Supply Current | 175uA |
| Output Type | Fixed |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 175uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS75005RGWR Datasheet
Download the complete datasheet for Texas Instruments TPS75005RGWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

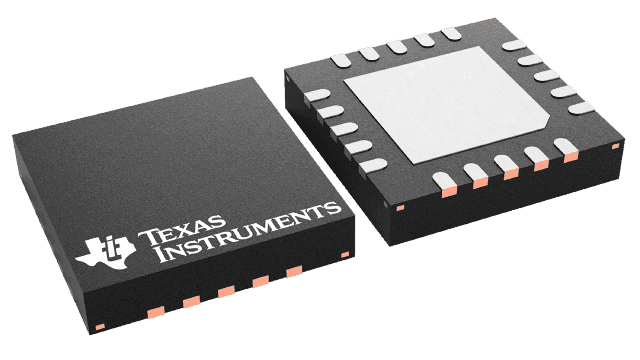

Product Images
