Positive, fixed 2.8V output linear voltage regulator with a maximum output current of 1.5A. Features a low dropout voltage of 410mV and an input voltage range from 2.7V to 5.5V. Offers 3% accuracy and a quiescent current of 200uA. Housed in a 6-pin SOT-223 package, this RoHS compliant component operates from -40°C to 125°C.
PackageSOT-223-6
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS78628DCQR technical specifications.
General
Accuracy
3%
Package/Case
SOT-223-6
Dropout Voltage
410mV
Input Bias Current
310uA
Lead Free
Lead Free
Min Current Limit
2.4A
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
2.8V
Min Output Voltage
2.8V
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
2.8V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
200uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS78628DCQR Datasheet
Download the complete datasheet for Texas Instruments TPS78628DCQR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

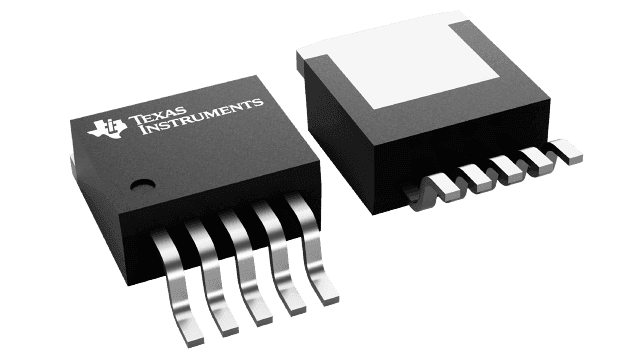

Product Images
