Texas Instruments
TPS7A1633DRBR

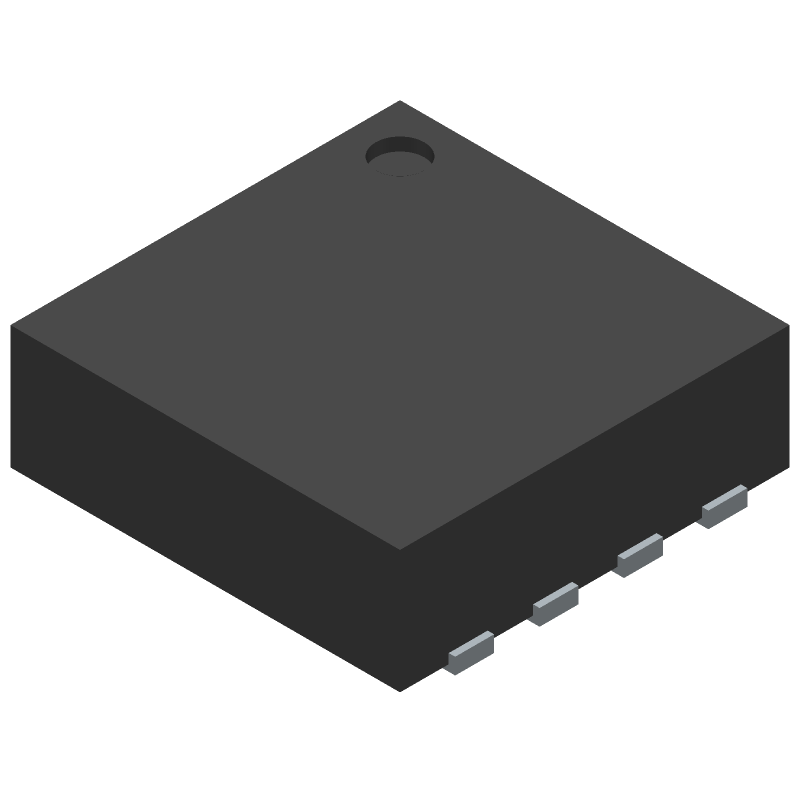

100-mA, 60-V, ultra-low-IQ, low-dropout (LDO) voltage regulator with power good and enable 8-SON -40 to 125
Quick Jump:
Technical Specifications
Texas Instruments TPS7A1633DRBR technical specifications.
General
Number of Terminals
8
Terminal Position
DUAL
JEDEC Package Code
S-PDSO-N8
Width
3
Length
3
Number of Functions
1
Number of Outputs
1
Input Voltage-Max
60
Input Voltage-Min
3
Output Voltage1-Min
3.234
Output Voltage1-Max
3.366
Output Current1-Max
0.1
Adjustability
FIXED
Operating Temperature TJ-Max
125
Dropout Voltage1-Nom
0.06
Output Voltage1-Nom
3.3
Operating Temperature TJ-Min
-40
Dropout Voltage1-Max
0.5
Compliance
RoHS
Yes
Eccn Code
EAR99
Lead Free
Yes
REACH
Compliant
Military Spec
False
Datasheet
Texas Instruments TPS7A1633DRBR Datasheet
Download the complete datasheet for Texas Instruments TPS7A1633DRBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
