Texas Instruments
TPS7A4525DCQT

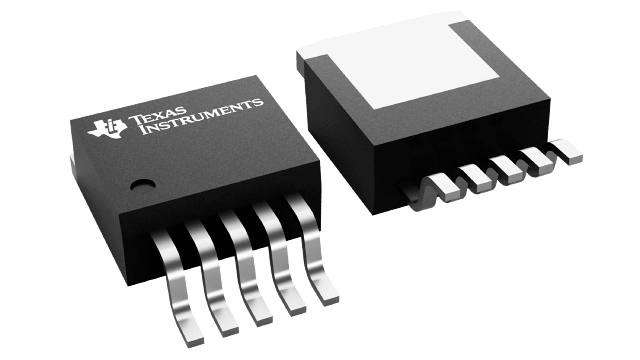

1.5-A, 20-V, ultra-low-dropout voltage regulator with reverse current protection & enable 6-SOT-223
PackageSOT-223-6
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS7A4525DCQT technical specifications.
General
Accuracy
1%
Package/Case
SOT-223-6
Dropout Voltage
300mV
Lead Free
Lead Free
Min Current Limit
1.6A
Max Input Voltage
20V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
2.5V
Min Output Voltage
2.5V
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
250
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
1mA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS7A4525DCQT Datasheet
Download the complete datasheet for Texas Instruments TPS7A4525DCQT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
