Texas Instruments
TPS82677SIPR
600mA, High-Efficiency MicroSiP™ Step-Down Converter Module (Profile <1.0mm). 8-uSiP -40 to 85
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS82677SIPR technical specifications.
General
Package/Case
BGA
Efficiency
90%
Features
UVLO, OCP, OTP
Height
0.04inch
Lead Free
Lead Free
Length
0.12inch
Max Input Voltage
4.8V
Min Input Voltage
2.3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
600mA
Mount
Surface Mount
Number of Outputs
1
Output Current
600mA
Output Voltage
1.2V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
17uA
RoHS Compliant
Yes
Series
MicroSip™
Voltage - Output 1
1.2V
Width
0.09inch
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS82677SIPR Datasheet
Download the complete datasheet for Texas Instruments TPS82677SIPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

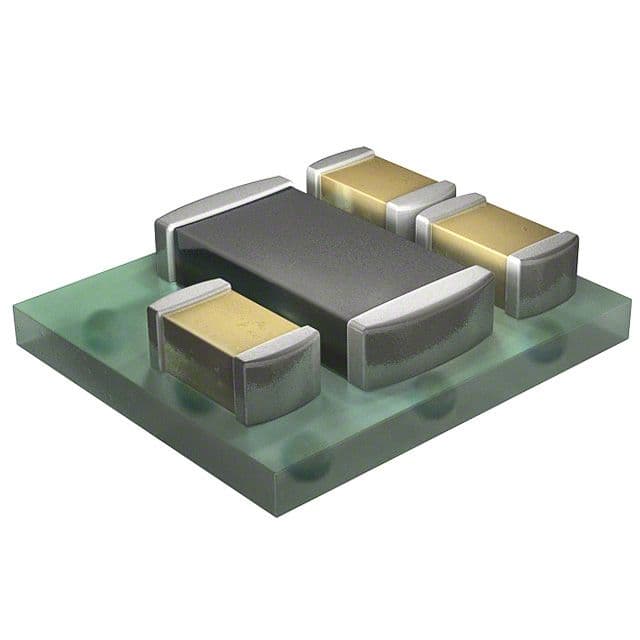

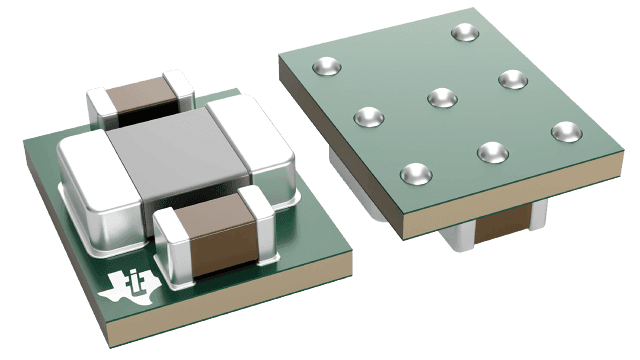

Product Images
