Texas Instruments
TRS208IDWR
5-V Multichannel RS-232 Line Driver/Receiver With +/-15-kV ESD Protection 24-SOIC -40 to 85
PackageSOIC
Current20mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TRS208IDWR technical specifications.
General
Package/Case
SOIC
Data Rate
120Kbps
Lead Free
Lead Free
Logic Function
Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
4
Number of Receivers
4
Number of Transceivers
1
Number of Transmitters
4
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Receiver Hysteresis
500mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
20mA
Weight
0.022025oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TRS208IDWR Datasheet
Download the complete datasheet for Texas Instruments TRS208IDWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

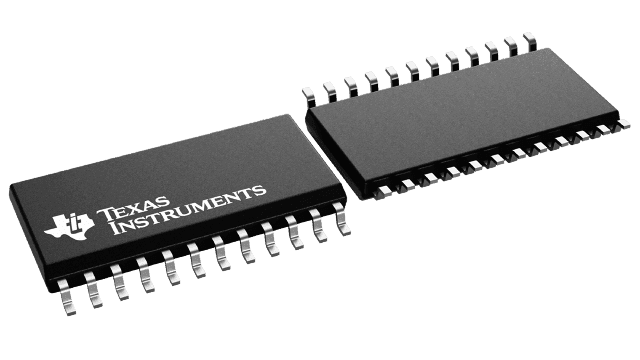

Product Images
